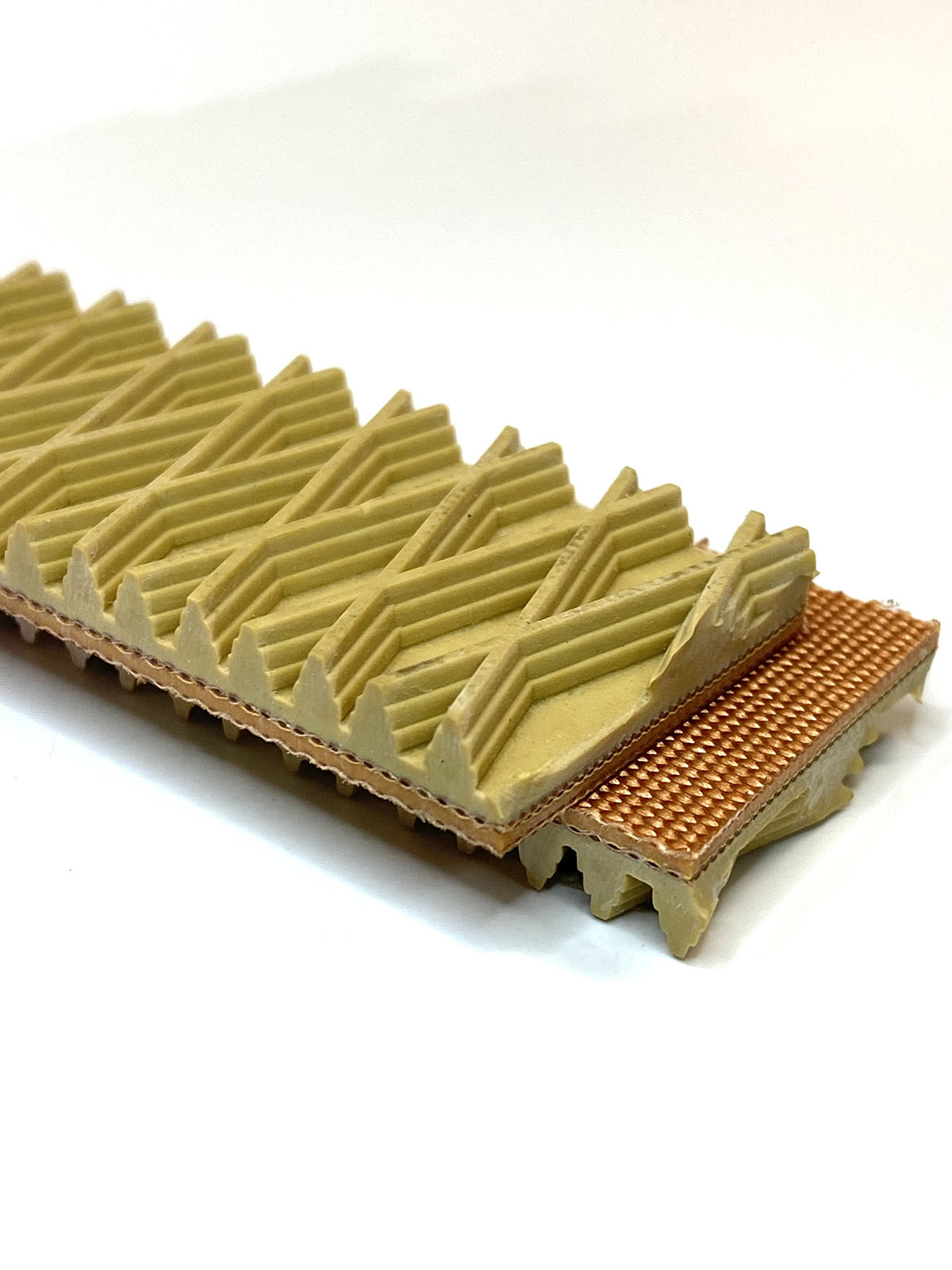

TAN WEDGEGRIP
| STRUCTURE | |||
| Total thickness | 6.6mm | ||
| No. of plies | 2 | ||
| Fabric | Rubber/Fabric | ||
| Weft | Rigid | ||
| Weight | 4.4kg/m2 | ||
| Min Temp. | -10°C to | ||
| Max Temp. | +70° C |
| 1. Top cover | |||
| Material | NBR Rubber | ||
| Colour | White | ||
| Surface | Wedgegrip | ||
| Hardness | 45 shore A |
| 2. Bottom cover | |||
| Material | Fabric | ||
| Colour | Natural | ||
| Surface | Bare Fabric |
| TENSIONS | |||
| Working load 1% elongation | 16N/mm | ||
| Breaking load | 22N/mm |
| MIN. DRUM DIAMETER | |||
| Flexing | 75mm | ||
| Back Flexing | N/A |
| JOIN TYPE | |||
| Recessed RS125, Recessed No1 Uniba |
| PROFILES APPLICATION | |||
| Profile on top Cover | No | ||
| Profile on bottom cover | Yes | ||
| Corrugated Sidewalls | No |
| SPECIAL CHARACTERISTICS | |||
| Minerals, Oils & Grease Res. | No | ||
| Abrasion resistance | Yes | ||
| Flame retardant | No | ||
| FDA Approved | No | ||
| EU Approved | No | ||
| Antistatic | No |
| COEFFICIENT OF FRICTION | |||
| Steel driving pulley | 0.25 |
