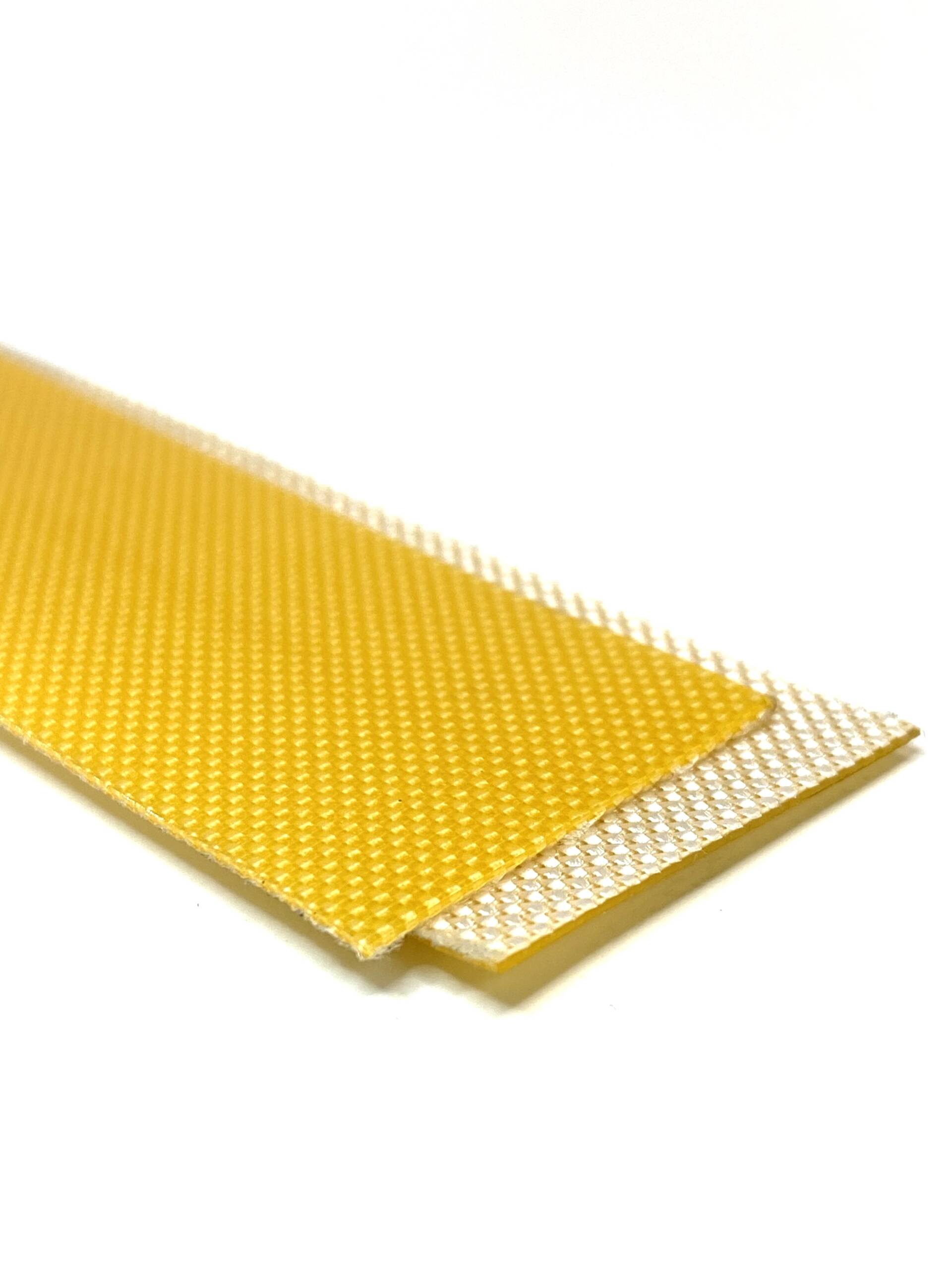

T04 AMBER
| STRUCTURE | |||
| Total thickness | 0.75mm | ||
| No. of plies | 1 | ||
| Fabric | Polyester | ||
| Weft | Rigid | ||
| Weight | 0.80kg/m2 | ||
| Constant temp. min | -20°C | ||
| Constant temp. max. | +110° C |
| 1. Top cover | |||
| Top cover thickness | 0.25mm | ||
| Material | PU | ||
| Colour | Amber | ||
| Surface | Smooth | ||
| Hardness | 86 shore A |
| 2. Bottom cover | |||
| Thickness | 0.10mm | ||
| Material | PU | ||
| Colour | White/Natural | ||
| Surface | IMPRG Fabric |
| TENSIONS | |||
| Working load 1% elongation | 5N/mm | ||
| Breaking load | 60N/mm |
| MIN. DRUM DIAMETER | |||
| Flexing | 4mm | ||
| Back Flexing | 15mm |
| JOIN TYPE | |||
| Finger Splice |
| PROFILES APPLICATION | |||
| Profile on top Cover | Yes | ||
| Profile on bottom cover | Yes | ||
| Runner Sidewalls | No |
| SPECIAL CHARACTERISTICS | |||
| Animal Oil & Grease Res. | Yes | ||
| Vegetable Oil & Grease Res | Yes | ||
| Abrasion resistant | Excellent | ||
| Flame retardant | No | ||
| FDA Approved | Yes | ||
| EU Approved | Yes |
| SUPPORT SURFACE | |||
| Slider bed | Yes | ||
| Rollers | Yes | ||
| Troughed Application | No |
| COEFFICIENT OF FRICTION | |||
| On Steel | 0.17 | ||
| On Wood | 0.29 | ||
| On Plastic | 0.20 |
