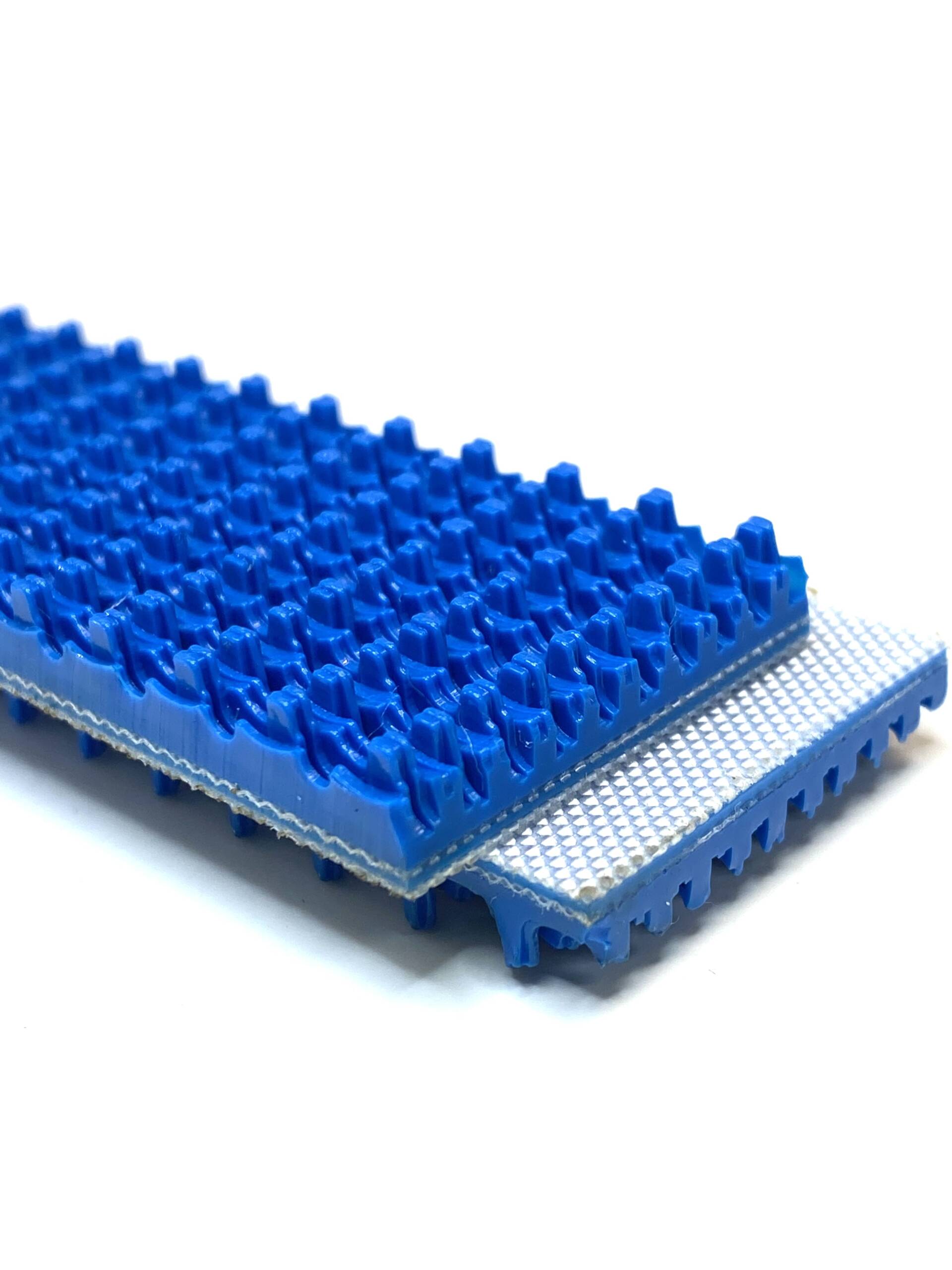

2RT (Blue)

STRUCTURE
Total thickness 6.3mm
No. of plies 2
Fabric Polyester
Weft Rigid
Weight 4.9kg/m2
Working Temp. min. -10°C
Working Temp. max. +90° C
1. Top cover
Top cover thickness 3.1mm
Material PVC
Colour Blue
Surface Roughtop
Hardness 55 shore A
2. Internal cover
Material PVC
3. Bottom cover
Material Polyester
Colour White/Natural
Surface IMPGR. Fabric
TENSIONS
Working load 1% elongation 7N/mm
Breaking load 20N/mm
MIN. DRUM DIAMETER
Flexing 60mm
Back Flexing 120mm
JOIN TYPE
RS62SS, A40LLSS, Finger O/lap Splice
PROFILES APPLICATION
Profile on top Cover No
Profile on bottom cover Yes
Runner Sidewalls No
SPECIAL CHARACTERISTICS
Veg. & Minerals Oils Res. Yes
Animal Fats Res. Yes
Flame retardant No
FDA Approved Yes
EU Approved Yes
Suitable for Incline/decline Yes
SUPPORT SURFACE
Slider bed Yes
Rollers Yes
Troughed Application No
COEFFICIENT OF FRICTION
Steel driving pulley 0.15
Lagged driving pulley 0.20



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
For more information, please call 03 9462 4544 or email us on sales@fdoconnor.com.au

Category: Product ID: 4244

Description

Download the PDF here.
