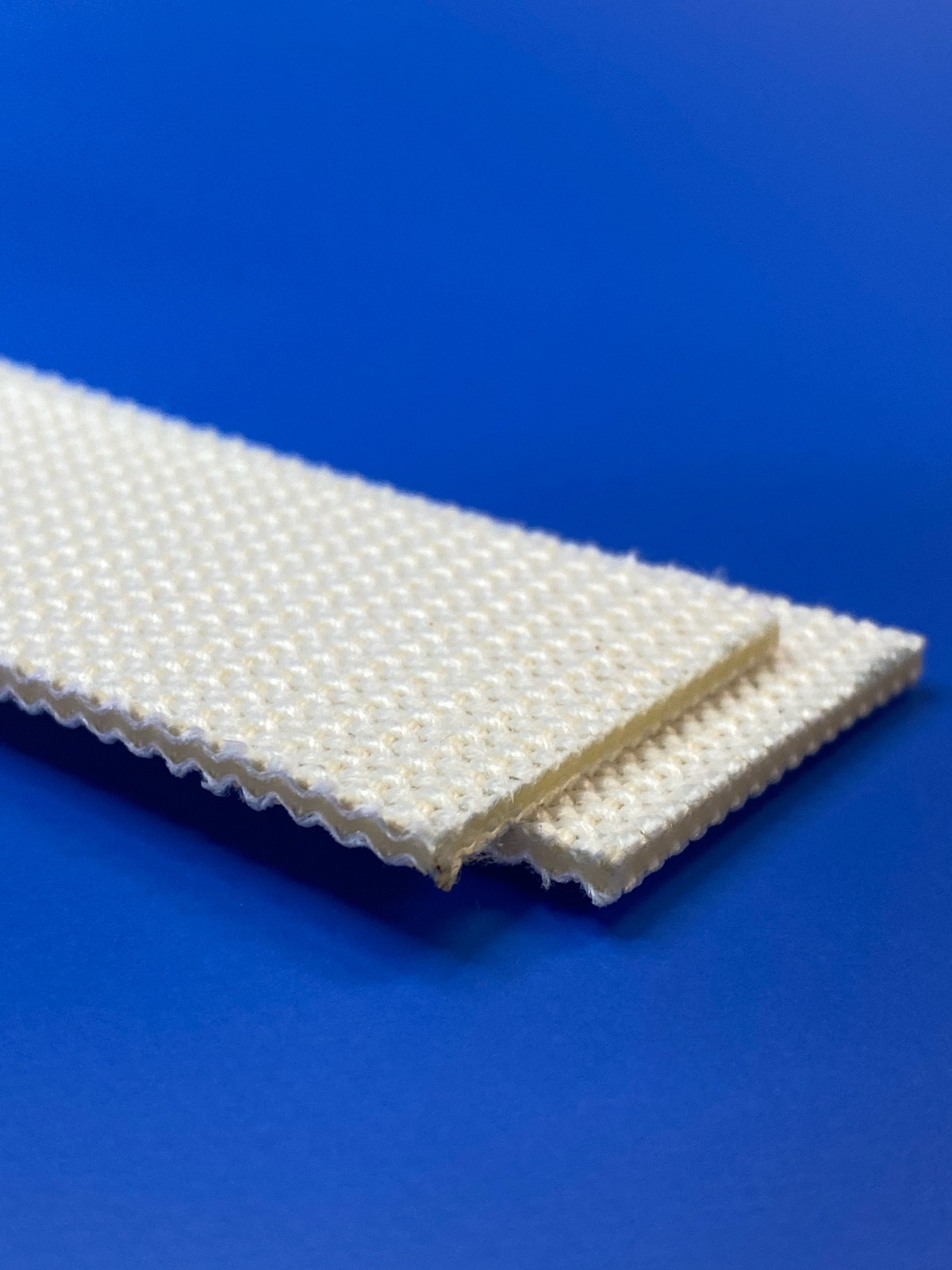

16FF Cotton

STRUCTURE
Total thickness		2.5mm
No. of plies		2
Fabric		Cotton
Weft		Rigid
Weight		2.50kg/m2
Working temp.		-5°C to +90° C

1. Top cover
Top cover thickness		0.00mm
Material		Cotton
Colour		Natural
Surface		Cotton
Hardness		0 shore A

2. Internal cover
Material		PU

3. Bottom cover
Material		Cotton
Colour		Natural
Surface		Cotton

TENSIONS
Working load 1% elongation		13N/mm
Breaking load		15N/mm

MIN. DRUM DIAMETER
Flexing		50mm
Back Flexing		50mm

JOIN TYPE
G001SS, UCM36SS, 25LL, Finger Splice

PROFILES APPLICATION
Profile on top Cover		Yes
Profile on bottom cover		Yes
Runner Sidewalls		No

SPECIAL CHARACTERISTICS
Animal Oil & Grease Res.		Yes
Vegetable Oil & Grease Res.		Yes
Flame retardant		No
FDA Approved		Yes
EU Approved		Yes
ATEX Approved		No
Low Friction		Yes

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		No

COEFFICIENT OF FRICTION
Steel driving pulley		0.22
Stainless slider bed		0.28



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
